JDP252 POLYIMIDE FILM TAPE
Properties
| Backing material | Bidirectional Polyimide Film |
| Type of adhesive | Silicone |
| Total thickness | 50 μm |
| Color | Amber |
| Breaking Strength | 110 N/inch |
| Elongation | 35% |
| Adhesion to Steel | 6N/inch |
| Temperature Resistance | 260˚C |

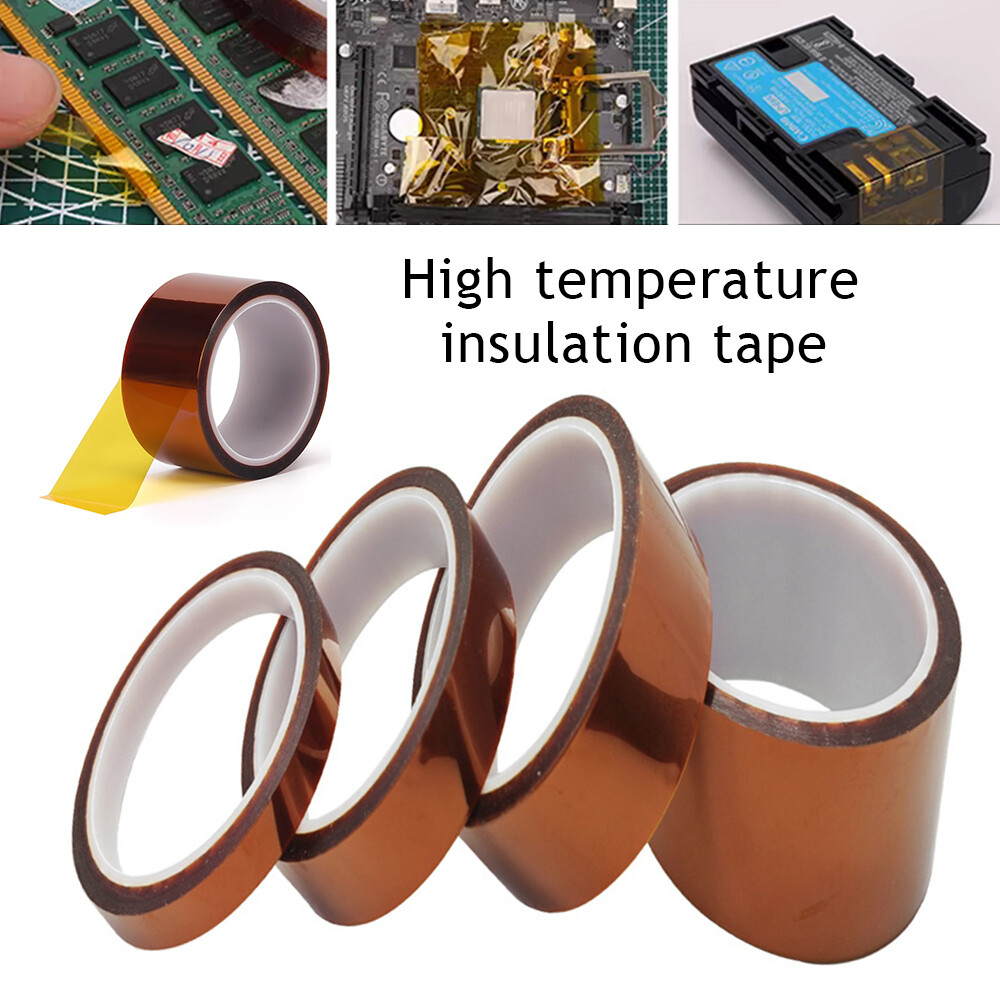

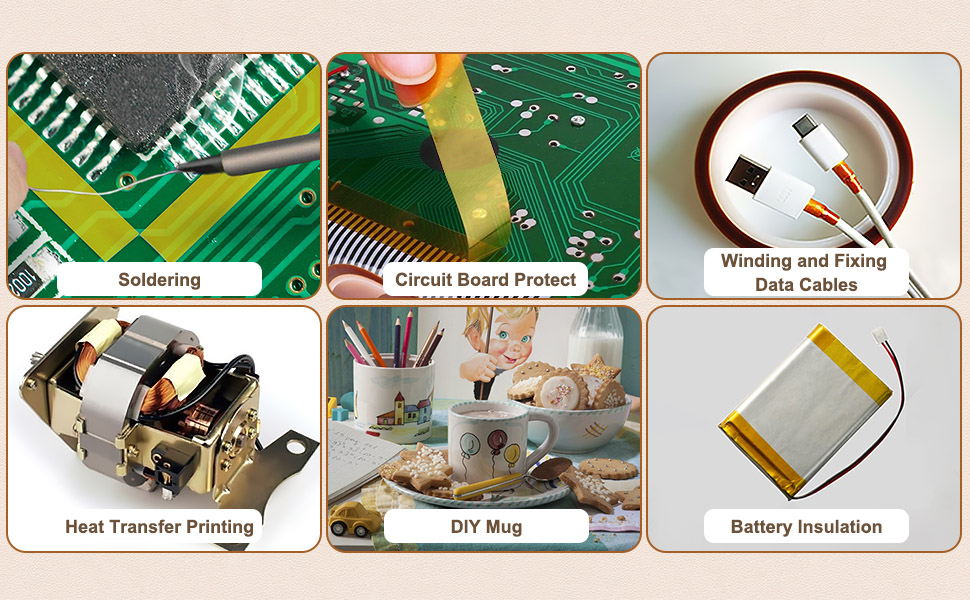

Applications
● Masking on printed circuit boards during soldering
● High-temperature insulation bundling in the electrical industry, such as transformer coils, and insulation repair for motors and cables.
● High-temperature masking protective film for applications such as 3D printed boards, powder coating masking, and the production of various electronic components.
Self Time & Storage
This product has a 1-year shelf life (from date of manufacture) when stored in humiditycontrolled storage (50°F/10°C to 80°F/27°C and <75% relative humidity).
● Excellent H-class electrical insulation performance
● Superior adhesion, high-temperature resistance, solvent resistance, and leaves no residue after peeling
● Please remove any dirt, dusts, oils, etc., from surface of adherend before applying the tape.
● Please give sufficient pressure on the tape after applying to obtain necessary adhesion.
● Please store the tape in cool and dark place by avoiding heating agents such as direct sunlight and heaters.
● Please do not stick tapes directly to skins unless the tapes are designed for the application to human skins, otherwise a rash or adhesive deposit may arise.
● Please confirm carefully for the selection of tape before in order to avoid adhesive residue and/or contamination to adherends that may arise by applications.
● Please consult with us when you use the tape for special applications or seem to use special applications.
● We described all values by measuring, but we do not mean to guarantee those values.
● Please confirm our production lead-time, since we need it longer for some products occasionally.
● We may change the specification of product without prior notice.
● Please be very careful when you use the tape. Jiuding Tape does not hold any liabilities of the occurrence of damage that results from using of the tape.
