JD4055 PET(Mylar) ELECTRICAL TAPE
Properties
| Backing material |
Polyester film |
| Type of adhesive | Acrylic |
| Total thickness | 55 μm |
| Color | Yellow, Blue, White, Red, Green, Black, Clear, etc |
| Breaking Strength | 120 N/25mm |
| Elongation | 80% |
| Adhesion to Steel | 8.5N/25mm |
| Temperature Resistance | 130˚C |

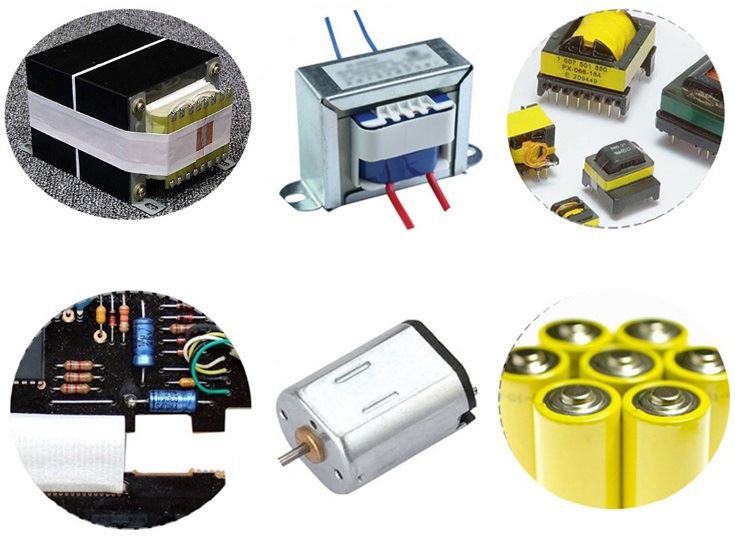

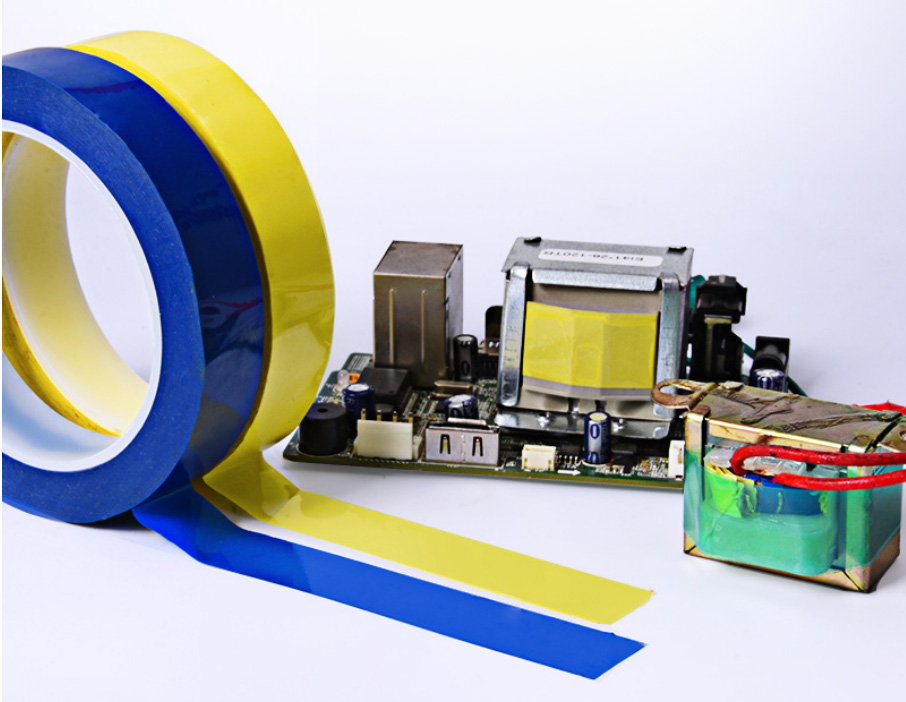

Applications
● Used in wrapping coils
● Capacitors
● Wire harnesses
● Transformers
● Shaded pole motors and etc
Self Time & Storage
This product has a 1-year shelf life (from date of manufacture) when stored in humidity controlled storage (50°F/10°C to 80°F/27°C and <75% relative humidity).
Resists oil, chemicals, solvents, moisture, abrasion and cut through.
● Please remove any dirt, dusts, oils, etc., from surface of adherend before applying the tape.
● Please give sufficient pressure on the tape after applying to obtain necessary adhesion.
● Please store the tape in cool and dark place by avoiding heating agents such as direct sunlight and heaters.
● Please do not stick tapes directly to skins unless the tapes are designed for the application to human skins, otherwise a rash or adhesive deposit may arise.
● Please confirm carefully for the selection of tape before in order to avoid adhesive residue and/or contamination to adherends that may arise by applications.
● Please consult with us when you use the tape for special applications or seem to use special applications.
● We described all values by measuring, but we do not mean to guarantee those values.
● Please confirm our production lead-time, since we need it longer for some products occasionally.
● We may change the specification of product without prior notice.
● Please be very careful when you use the tape. Jiuding Tape does not hold any liabilities of the occurrence of damage that results from using of the tape.
