JD3502T ACETATE CLOTH TAPE(with release liner)
Properties
| Backing material | Acetate cloth |
| Type of adhesive | Acrylic |
| Release liner | Single-silicone release liner |
| Total thickness | 200 μm |
| Color | Black |
| Breaking Strength | 155 N/inch |
| Elongation | 10% |
| Adhesion to Steel | 15N/inch |
| Holding Power | ＞48 H |
| Dielectric Strength | 1500 V |
| Operating temp | 300˚C |
Applications

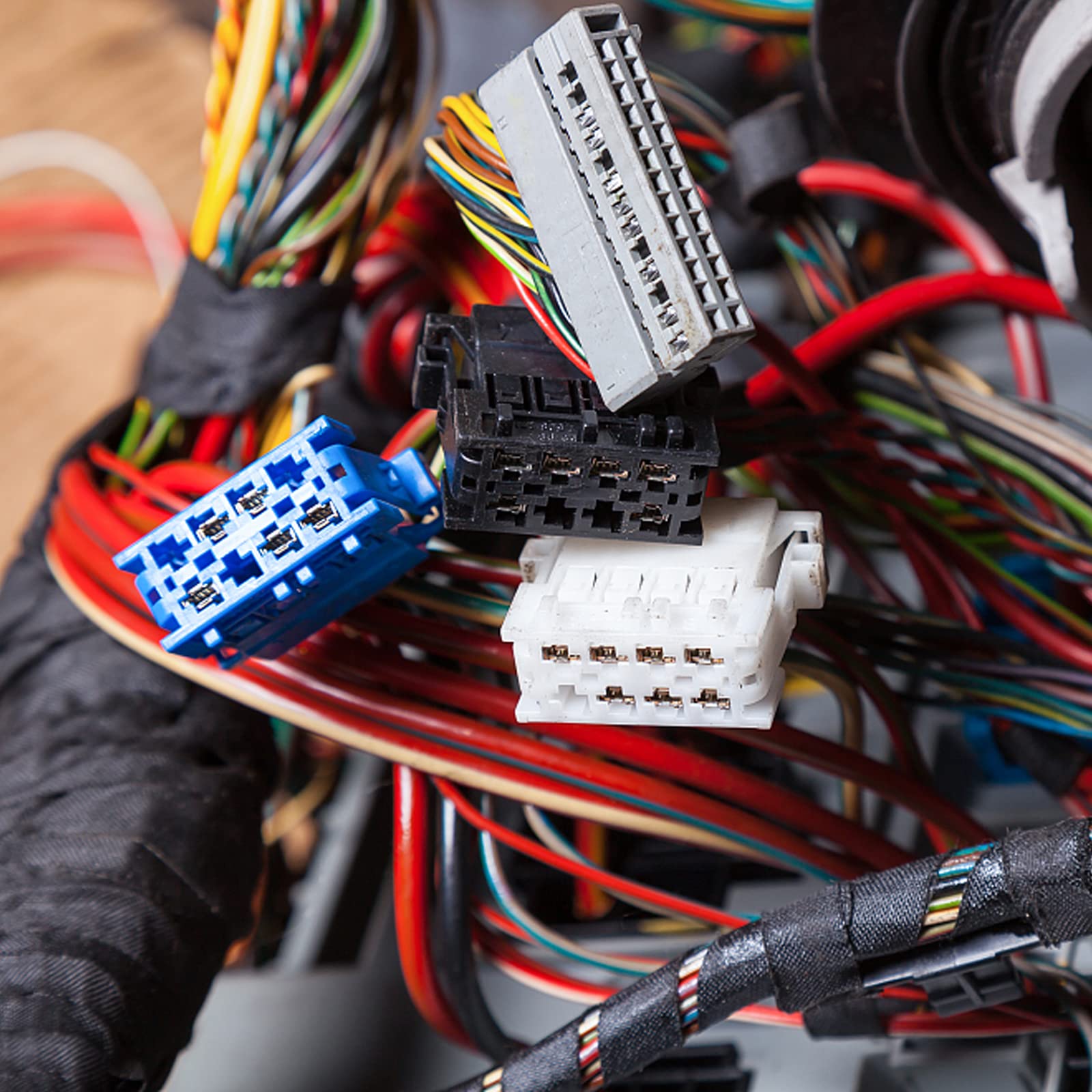

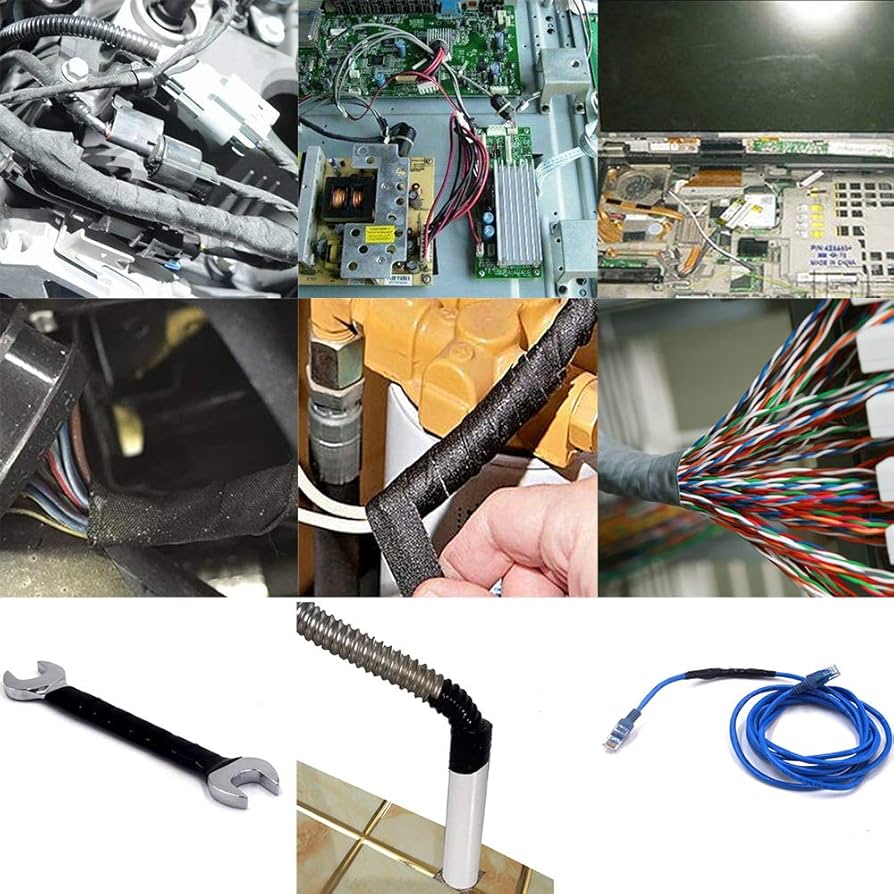

For interlayer insulation of transformers and motors—especially high-frequency transformers, microwave-oven transformers, and capacitors—and also for wire-harness wrapping and bundling, as well as helping to secure deflection-coil ceramics, ceramic heaters, and quartz tubes; it is likewise used in TV, air-conditioner, computer, and monitor assemblies.
Self Time & Storage
This product has a 1-year shelf life (from date of manufacture) when stored in humidity controlled storage (50°F/10°C to 80°F/27°C and <75% relative humidity).
● High temperature resistance, solvent resistance, aging resistance
● Soft and conformable
● Excellent formability, easy to die-cut
● Easy to unwind, acid- and alkali-resistant, mildew-proof
● Please remove any dirt, dusts, oils, etc., from surface of adherend before applying the tape.
● Please give sufficient pressure on the tape after applying to obtain necessary adhesion.
● Please store the tape in cool and dark place by avoiding heating agents such as direct sunlight and heaters.
● Please do not stick tapes directly to skins unless the tapes are designed for the application to human skins, otherwise a rash or adhesive deposit may arise.
● Please confirm carefully for the selection of tape before in order to avoid adhesive residue and/or contamination to adherends that may arise by applications.
● Please consult with us when you use the tape for special applications or seem to use special applications.
● We described all values by measuring, but we do not mean to guarantee those values.
● Please confirm our production lead-time, since we need it longer for some products occasionally.
● We may change the specification of product without prior notice.
● Please be very careful when you use the tape. Jiuding Tape does not hold any liabilities of the occurrence of damage that results from using of the tape.
